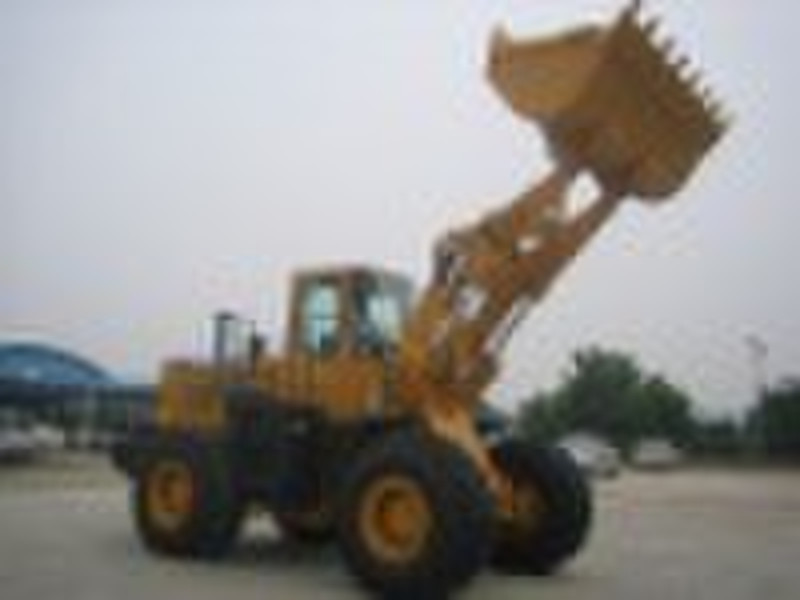

ZL50 Loader

ZL50 Loader Main specifications and characters of ZL50G loader 1,Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space. 2,Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable 3,Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety 4,Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise ,high reliability .Double-stage air filter is standard equipment for dusty fields. 5,Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable 6,Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy 7,Pilot hydraulic implement controls make operate easy and comfortable 8,The big loading engine side covers made in steel are of good appearance and suitable for maintenance Performance1 rated load 5000kg 2 overall weight 17100kg 3 rated bucket capacity 3m3 4 maximum tractive force 152KN 5 maximum breakout force ≥170KN 6 maximum grade ability 30°C 7 maximum dump height 3150mm 8 maximum dump reach 1250mm 9 overall dimension (L×W×H) 7920*3050*3400mm 10 minimum turning radius 6640mm Engine11 model Weichai Steyr WD615G.220 12 type lnline water cooling dry cylinder injection 13 No. of cylinder-bore/stroke 6-126×130mm 14 rated power 162kw--2400r/min 15 maximum torque 860N.m 16 min fuel-consume ratio ≤215g/kw.h Transmission system17 torque converter YJ375 18 gearbox mode Power shift normally engaged straight gear 19 gear shift 4 forward shift 4reverse shift 20 maximum speed 38km/h Drive axles21 main reducing spiral bevel gear grade 1reduction 22 decelerating mode planetary reduction,grade 1 23 wheel base (mm) 3200mm 24 wheel tread 2250mm 25 minimum ground clearance 450mm Hydraulic system 26 system working pressure 18MPa 27 boom lifting time 5.95±0.2s 28 total time 10.95±0.5s 29 fuel tank capacity 300L 30 function of leveling automatically yes Brake system31 service brake air over hydraulic disc brake on 4 wheels 32 parking brake manual parking brake Tyre 33 type specification 23.5-25 34 front tyre pressure 0.4Mpa 35 rear tyre pressure 0.35Mpa
